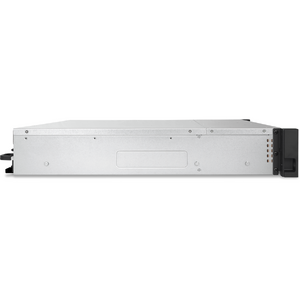

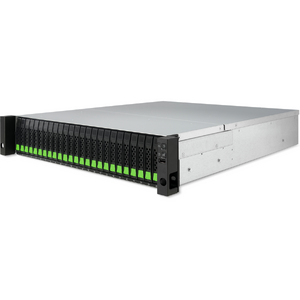

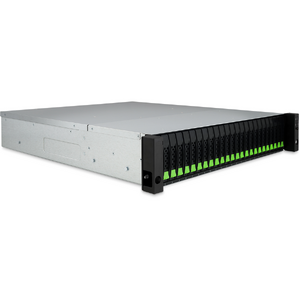

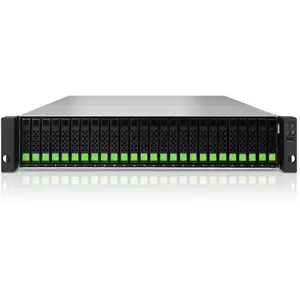

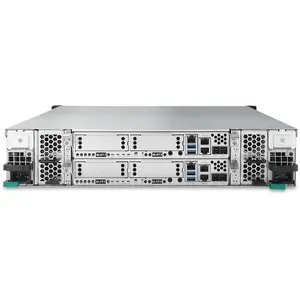

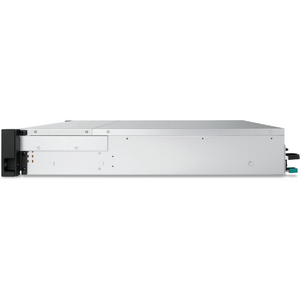

QSAN XS1226D #26547

43.839,86 lei TVA inclus


Disponibilitate: Contactati-ne pentru info stoc

Garantie: 36 luni.

Livrare gratuita


Descriere XS1226D de la QSAN

Dual-Controller SAN System, iSCSI, RAID 0,1, 5, 6, 10, 50, 60, global hot spare, max 64GB RAM, 4-ported 10GbE BASE-T iSCSI, redundant power supply, 4 slots for optional host cards ( Slot 1: Optional host cards for 32/16Gb X 2/4 ports Fibre Channel, or 25/10Gb X 2/4 ports iSCSI, or 1Gb X 4 ports iSCSI card; Slot2: 10Gb X 4 ports iSCSI, or 1Gb X 4 ports iSCSI card) . RAIL kit (optional).
LVM5: 4096 LUNs (max), 64HDDs in one RAID group, local cloing, volume snapshot (4096 snapshots/system, 64 snapshots/LUN, 64 LUNs), remote-replicaiton, thin-provisioning, SSD caching (optional), auto-tiering w/ 3-tier (optional)
  • Arhitectura
    • Arhitectura
      Dual Ctrl
  • CPU
    • Procesor
      Intel D-1508 Dual Core
    • Arhitectura Procesor
      64 bit
    • Numar nuclee
      2
  • Memorie RAM
    • Cantitate Preinstalata
      4 GB
    • Tip Memorie
      DDR4
    • Memorie Maxima
      128 GB
  • Stocare
    • Numar Sloturi Unitati Stocare
      26
    • Tip Sloturi Unitati Stocare
      2.5"
    • Interfata Unitati Stocare
      SAS/SATA
    • Tip Unitate Stocare Compatibila
      2.5" 12Gb SAS/NL SAS 2.5" SAS/SATA SSD* (Need optional MUX board)
    • Capacitate maxima bruta
      798 TB
    • Compatibil Hot Swap
      Da
    • Altele
      For more information, please refer to compatibility matrix and hardware manual The capacity is based on 30.72TB, larger capacity is allowed when larger drive is available in the future. ​ Capacity may vary by RAID types 6Gb MUX board needed for 2.5" SATA drives in dual controller system
  • Porturi Externe
    • USB 2.0
      1
    • USB 3.0
      2
    • Altele
      UPS Port x 1 Console Port x 1
  • Porturi Conectivitate
    • 1GbE RJ45 LAN Port
      1 (Onboard Management Port)
    • 10GbE RJ45 LAN Port
      2 iSCSI (Onboard) 2 iSCSI (Option)
    • 10GbE SFP+ LAN Port
      4 iSCSI (Option)
    • 25GbE SFP28 LAN Port
      2 iSCSI (Option)
    • 16Gb SFP+ Fibre Channel
      4 (Option) 2 (Option)
    • 32Gb SFP28 Fibre Channel
      2 (Option)
    • Altele
      Pentru mai multe informații, consultați cartea de accesorii
  • Porturi de expansiune
    • 12Gb/s SAS Wide Port
      2 (Onboard)
    • Gen3x8 Slot
      1
    • Gen3x4 Slot
      1
  • Dimensiuni
    • H x W x D
      88 * 438 * 569 mm
    • Format carcasa
      2U
    • Greutate Bruta
      28,96 Kg
  • Protectie memorie
    • Modul super condensator + Memorie Flash
      Da
    • Modul de rezervă pentru baterie + Memorie Flash
      Da
  • Altele
    • Numar ventilatoare
      4
    • Numar surse
      2
    • Consum estimat
      429 W



Produsul este nou si comercializat in ambalajul original al producatorului. IT Direct garanteaza ca produsul achizitionat este conform cu fotografia prezentata. Nuanta, tonul si intensitatea culorii pot varia in functie de monitor.

Cod produs: #26547 | Cod producator: QSAN XS1226D
